| General |
| IPV4/IPv6 WAN |
PPPoE, DHCP, Static IPPPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| LTE Standard |
LTE Cat4 or LTE Cat6 |
| Wireless Standards |
IEEE802.11a/n/ac,5GHz
IEEE802.11b/g/n,2.4GHz |
| Signal Rate |
5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps |
| Operation Frequency |
2.4GHz and 5GHz |
| Receive Sensitivity |
5GHz
11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm
11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm,
11n HT20: -72dBm, 11n HT40: -71dBm
2.4GHz
11g 54M: -77dBm
11n HT20: -74dBm, 11n HT40: -72dBm |
| Wireless Security |
WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| VOIP Standards |
SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711 |
| Hardware |

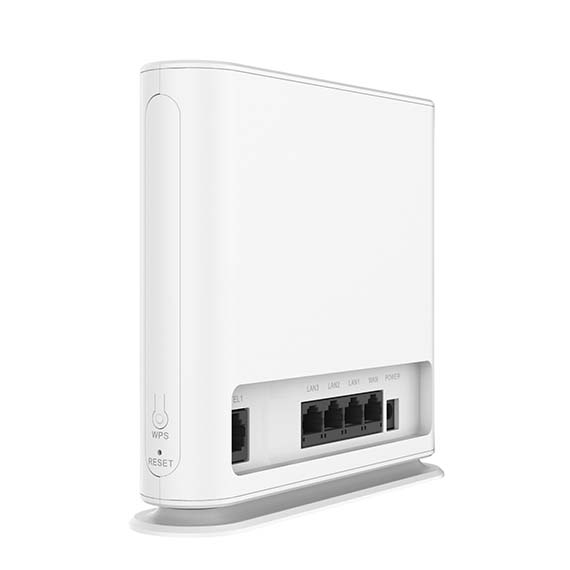

| Interfaces |
1 x WAN Port
3 x 10/100/1000Mbps LAN Ports
1 x RJ11 VoIP (Support SIP/VOLTE)
1 x Sim card Port |
| Buttons |
Power ON/OFF Button, WPS Button, WiFi Button，Reset Button |
| Power Supply |
DC 12V 2A |
| Antenna |
2 x 5dBi dual band fixed antennas
2 x 5dBi 4G LTE antennas |
| Dimensions (W X D X H) |
175 x 168x 52mm |
| LTE Support Bands |
| Variant |
FDD-LTE B1/B2/B3/B5/B7/B8/B28
TDD-LTE B38/B39/B40/B41
HSPA+/WCDMA B1/B2/B5/B8
GSM/GPRS/EDGE B2/B3/B5/B8 |
| Protocols |
TCP/UDP/PPP/FTP/HTTP/SMTP/SSL/POP3/DNS/MMS |
| Data |
•LTE CAT.4
– Downlink up to 150Mbps
– Uplink up to 50Mbps,
•LTE CAT.6
– Downlink up to 300Mbps
– Uplink up to 50Mbps, |
| Software Features |
| WAN Type |
ATM/PTM/ETH/Dongle |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall
IP Address Filter/MAC Address Filter
WiFi Black/White list |
| USB Sharing |
Support Samba(Storage)/FTP Server/Media Server/Printer Server/DLNA |
| VOIP Features |
One RJ-11 FXS ports for connecting to analog telephones
Call forwarding, Call waiting, Call block, 3-way conference call, etc. |
| Management |
Access Control
Local Management
Remote Management |
| Internet Protocol |
IPv4, IPv6 |
| Environment |
| Operating Temperature |
0°C~45°C |
| Storage Temperature |
-40°C~70°C |
| Relative Humidity |
10%~90%, non-condensing |
| Storage Humidity |
5%~95%, non-condensing |
| Certifications |
CE, RoHS |
