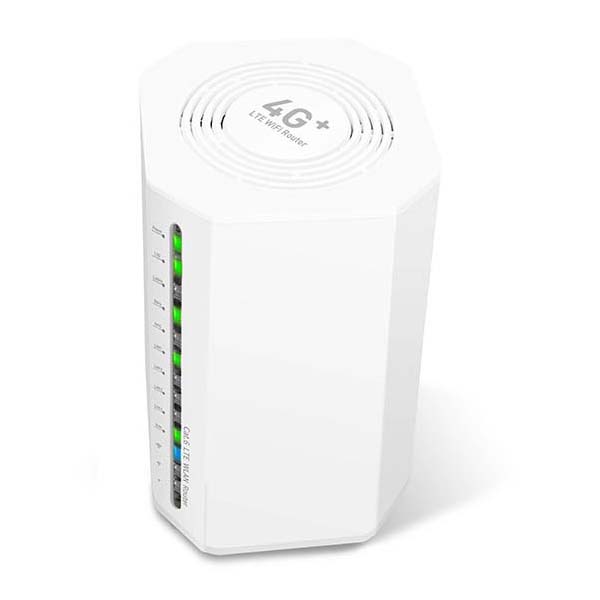

QR4LW1200 LTE WiFi Router

QR4LW1200 LTE WiFi Router

  • High performance wireless speeds up to 1200Mbps
  • Seamlessly connects you to the strongest signal as you move from room to room.
  • MU-MIMO technology creates a powerful, fast, and highly efficient Wi-Fi network
  • Automatically directs your devices to the optimal wireless band
  • Pairing been completed in advance, so you just need to plug them in and EASYMESH network ready for use.
  • Support WPS configuration with 1-Push button
  • Keep your kids safe by blocking specific devices and websites, and set a schedule to turn off wireless networks or restrict access.
  • One wireless network name (SSID) for your entire environment, no matter where you are.
  • A simple web APP help user to set up EASYMESH network quickly
Add to Compare
SKU: QR4LW Categories: ,

QR4LW1200 LTE WiFi Router

  • High performance wireless speeds up to 1200Mbps
  • Seamlessly connects you to the strongest signal as you move from room to room.
  • MU-MIMO technology creates a powerful, fast, and highly efficient Wi-Fi network
  • Automatically directs your devices to the optimal wireless band
  • Pairing been completed in advance, so you just need to plug them in and MESH network ready for use.
  • Support WPS configuration with 1-Push button
  • Keep your kids safe by blocking specific devices and websites, and set a schedule to turn off wireless networks or restrict access.
  • One wireless network name (SSID) for your entire environment, no matter where you are.
  • A simple web APP help user to set up MESH network quickly
  • OVERVIEW
  • SPECS

QR4LW1200 is an LTE broadband Wi-Fi router for smart home or small business network. The primary WAN interface is the LTE mobile broadband, ideal for sites without fixed lines infrastructure or locations that need temporary Internet access. Provides 4x Gigabit Ethernet LAN switch and 1x WAN interface and get internet access from a fixed-line broadband connection.

In addition to 4 GbE ports the QR4LW1200 offer of built-in 802.11ac Wi-Fi Mesh for LAN access.

Wireless Standards IEEE 802.11b/g/n (2.4GHz) ; IEEE 802.11ac (5GHz)
Support MESH Technology
Data Rate 300Mbps (2.4GHz) ; 866Mbps (5GHz)

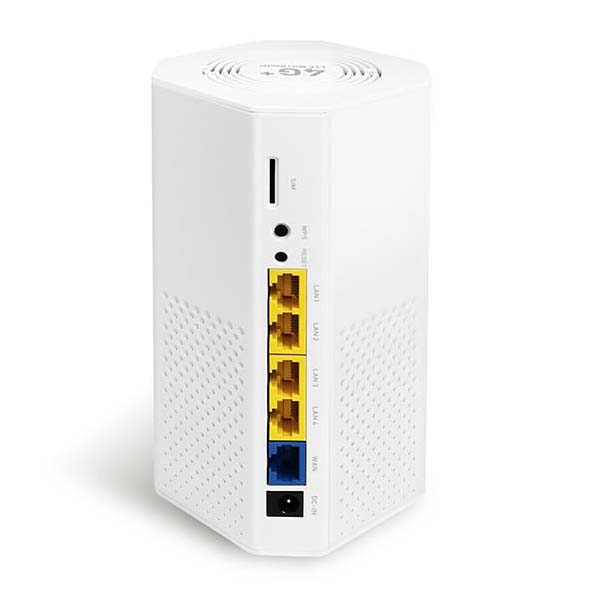

Interface 1 * SIM socket
1 * DC Power Jack
1 * WAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
2 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
WAN IP Assignment Static IP / DHCP client / PPPoE client
LTE Specification WCDMA : Band 1/3/5/8
FDD-LTE : Band1/3/5/7/8/20/28/321
TDD-LTE : Band 38/40/41 (2555~2655MHz)
LTE 2DLCA(Cat6) : B1+B1/3/5/7/8/20/28, B3+B3/5/7/8/20/28, B5+B7,B7+B7/8/20/28, B38+B38, B40+B40, B41+B41, B20+B321
GNSS(RESERVED): GPS/GLONASS/BeiDou/Galileo/QZSS
Features IGMP snooping and IGMP proxy
IPv4/IPv6 dual stacks function
VPN pass through
MU-MIMO
Band Steering
Beamforming
Management – HTTP Web-based Configuration
Remote Management – TR069 / HTTP
Support Mobile App to set up EASYMESH network quickly
Button WPS, Reset
LED Power, LTE, WLAN, WPS, LAN, WAN, WiFi Strength
Antenna 2 x LTE Internal Antennas
2 x 2.4Ghz Internal Antennas + 2 x 5Ghz Internal Antennas
Wireless Security 64 / 128-bit WEP,WPA, WPA2, WPS
Operating Environment Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95%RH non-condensing
Dimensions 87 (L) × 87 (W) × 162(H) mm
Package 1pcs LTE MESH WiFi Router
1pcs Power Adaptor
1pcs Quick Installation Guide
1pcs Ethernet Cable (RJ-45)
