QR213 – VoIP LTE Cat6 Gateway

QR213 – VoIP LTE Cat6 Gateway

Add to Compare
SKU: QW567Lvac-2 Categories: , , Tag:

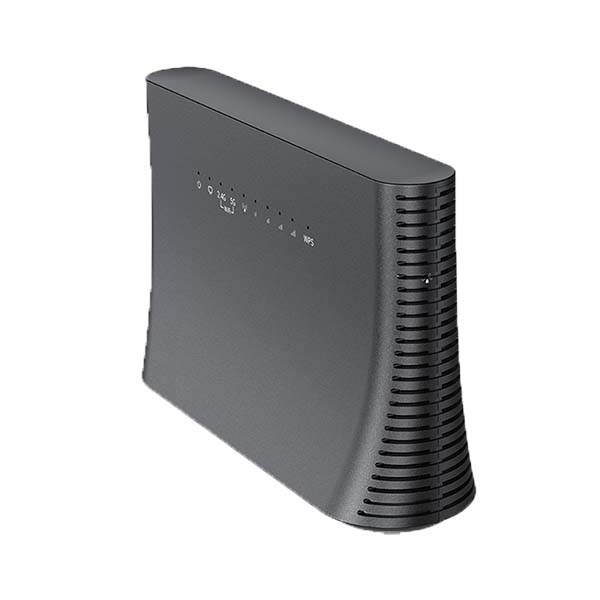

QR213 - VoIP LTE Cat6 Gateway

  • Dual WAN LTE/GbE Gateway
  • LTE Cat4/Cat6
  • Full speed LTE  Cat6. (Speed 300Mbps)
  • One FXS Phone Ports, Cost-Effective VoIP
  • RJ11 for CSFB/VOLTE/VoIP
  • Dual-Band WIFI, 2.4GHz+5GHz DBDC, Wireless Data rate up to 1200Mbps
  • TR069
  • Overview
  • Specs

QR213, is a multi-functional wireless 4G LTE Cat.6 Giga router, providing 4G LTE internet and voice service. Compliant with IEEE 802.11b/g/n/ac standards, the QR223 LTE Router can support up to 1200Mbps Wireless with Dual-Band WIFI 2.4GHz&5GHz. With an embedded 4G LTE cat6 module, it works well with all the mainstream frequency bands for 4G LTE up to 300Mbps. The QR213 LTE Router can also support voice service of both VoIP and VoLTE. With FOTA and TR069, the CPE can be easily managed.

Wireless Standards IEEE 802.11b/g/n (2.4GHz) ; IEEE 802.11ac (5GHz)
2.4&5 GHz, WIFI 2*2 MIMO,802.11 b/g/n/ac DBDC
Data Rate 300Mbps (2.4GHz) ; 866Mbps (5GHz)
Interface 1 * SIM socket
1 * DC Power Jack
1 * WAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
3 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
1 * RJ11 Port
WAN IP Assignment Static IP / DHCP client / PPPoE client
LTE Specification WCDMA : Band 1/3/5/8
FDD-LTE : Band1/3/5/7/8/20/28/321
TDD-LTE : Band 38/40/41 (2555~2655MHz)
LTE 2DLCA(Cat6) : B1+B1/3/5/7/8/20/28, B3+B3/5/7/8/20/28, B5+B7,B7+B7/8/20/28, B38+B38, B40+B40, B41+B41, B20+B321
GNSS(RESERVED): GPS/GLONASS/BeiDou/Galileo/QZSS
Features IGMP snooping and IGMP proxy
IPv4/IPv6 dual stacks function
VPN pass through
MU-MIMO
Band Steering
Beamforming
Management – HTTP Web-based Configuration
Remote Management – TR069 / HTTP
Button WPS, Reset
LED Power, LTE, WLAN, WPS, LAN, WAN, WiFi Strength
Antenna 4 x 4 LTE Internal Antennas
2 x 2.4Ghz/5Ghz Internal Antennas
Wireless Security 64 / 128-bit WEP,WPA, WPA2, WPS
Operating Environment Operating temperature: 0 – 45°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95%RH non-condensing
Dimensions 87 (L) × 87 (W) × 162(H) mm
