| General |
| IPV4/IPv6 WAN |
PPPoE, DHCP, Static IPPPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| LTE Standard |
LTE Cat6 FDD-LTE 300 Mbps/50Mbps |
| Wireless Standards |
IEEE802.11a/n/ac,5GHz
IEEE802.11b/g/n,2.4GHz |
| Wireless Security |
WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| DATA |
LTE CAT 6 |
|
Support Receive Diversity |
| VOIP Standards |
SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711 |
| Hardware |

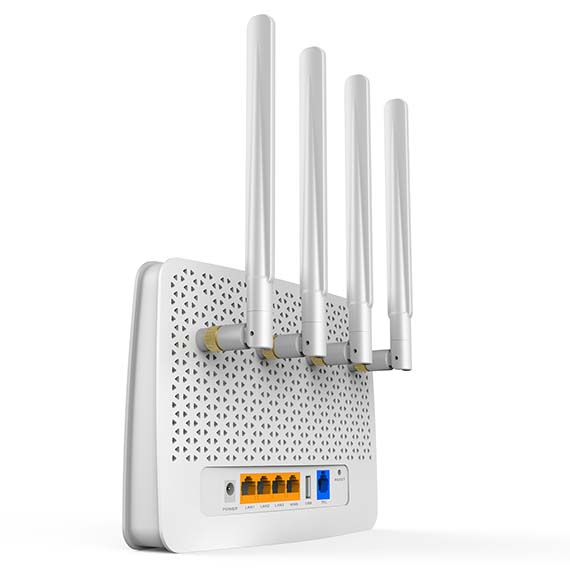

| Interfaces |
1 x WAN/LAN Port
3 x 10/100/1000Mbps LAN Ports
1 x RJ11 VoIP (Support SIP/VOLTE)
1 x Sim card Port |
| USIM/SIM |
1*2FF SIM card
support SIM/USIM/UIM,standard 6 PIN SIM card interface,
support 3V SIM card and 1.8V SIM card;internal
push-push SIM slot |
| LED |
Power Indication LED，WAN Signal Strength， WiFi/WPS Indication LED， WAN/LAN Status LED，Internet Status LED, |
| USB |
only for debug not for user |
| Buttons |
Power ON/OFF Button, WPS Button，Reset Button |
| Power Supply |
DC 12V 2A |
| Antenna |
Internal Antenna , External Antenna |
| Dimensions (W X D X H) |
205 x 140x 22mm |
| LTE Support Bands |
| Variant |
FDD-LTE B1/B2/B3/B5/B7/B8/B28/B66
TDD-LTE B38/B39/B40/B41
HSPA+/WCDMA 900/2100
GSM/GPRS/EDGE 850/900/1800/1900 |
| Protocols |
TCP/UDP/PPP/FTP/HTTP/SMTP/SSL/POP3/DNS/MMS |
| Data |
•LTE CAT.6
– Downlink up to 300Mbps
– Uplink up to 50Mbps, |
| Software Features |
| WAN Type |
ATM/PTM/ETH |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall
IP Address Filter/MAC Address Filter
WiFi Black/White list |
| USB Sharing |
Support Samba(Storage)/FTP Server/Media Server/Printer Server/DLNA |
| VOIP Features |
One RJ-11 FXS ports for connecting to analog telephones
Call forwarding, Call waiting, Call block, 3-way conference call, etc. |
| Management |
Access Control
Local Management
Remote Management |
| Internet Protocol |
IPv4, IPv6 |
| Environment |
| Operating Temperature |
0°C~45°C |
| Storage Temperature |
-40°C~70°C |
| Relative Humidity |
10%~90%, non-condensing |
| Storage Humidity |
5%~95%, non-condensing |
| Certifications |
CE, RoHS |
